Milk reception and measuring
Output rate - from 5,000 to 20,000 l/h
Volume and temperature measurement of incoming milk, mechanical cleaning, deaeration
Description

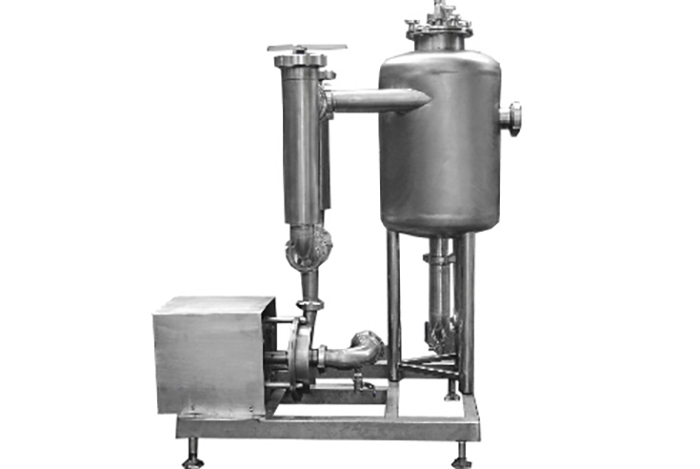

Purpose of milk reception unit
The milk receiving station is used to receive milk in a continuous stream from automobile tanks, measurement of its , volume and temperature. The equipment makes primary mechanical cleaning and separates the air from the stream.
It retains all nutrients
The equipment provides compliance with the milk intake technology and ensures the preservation of all the nutritional properties of the milk raw materials, as well as improving the quality of the product due to its deaeration.
Simplicity of operation
The reception station is easy to install and maintain. Disinfection and sanitization of equipment can be made in the CIP system.
Characteristic
Capacity, l/h | ||||
Characteristic | 5 000 | 10 000 | 15 000 | 20 000 |
| Receiving product | milk | |||
| Flow meter change relative error, % | +/- 0,25* | |||
| Product inlet / outlet nozzle connection size, DN | 50 | |||
| Pipeline meter diameter, DN | 40 | 50 | 65 | |
| Power, kW | 1,5 | 3,0 | 5,5 | 6,5 |
*Depending on the used counter brand
